Delta Bale Unroller Spreader
Mounted bale unroller
The Delta Bale Unroller can be used for bedding or feeding (wrapped bale, hay, straw). Designed for telescopic handler, front loader, front and rear linkage.
Mounted bale unroller

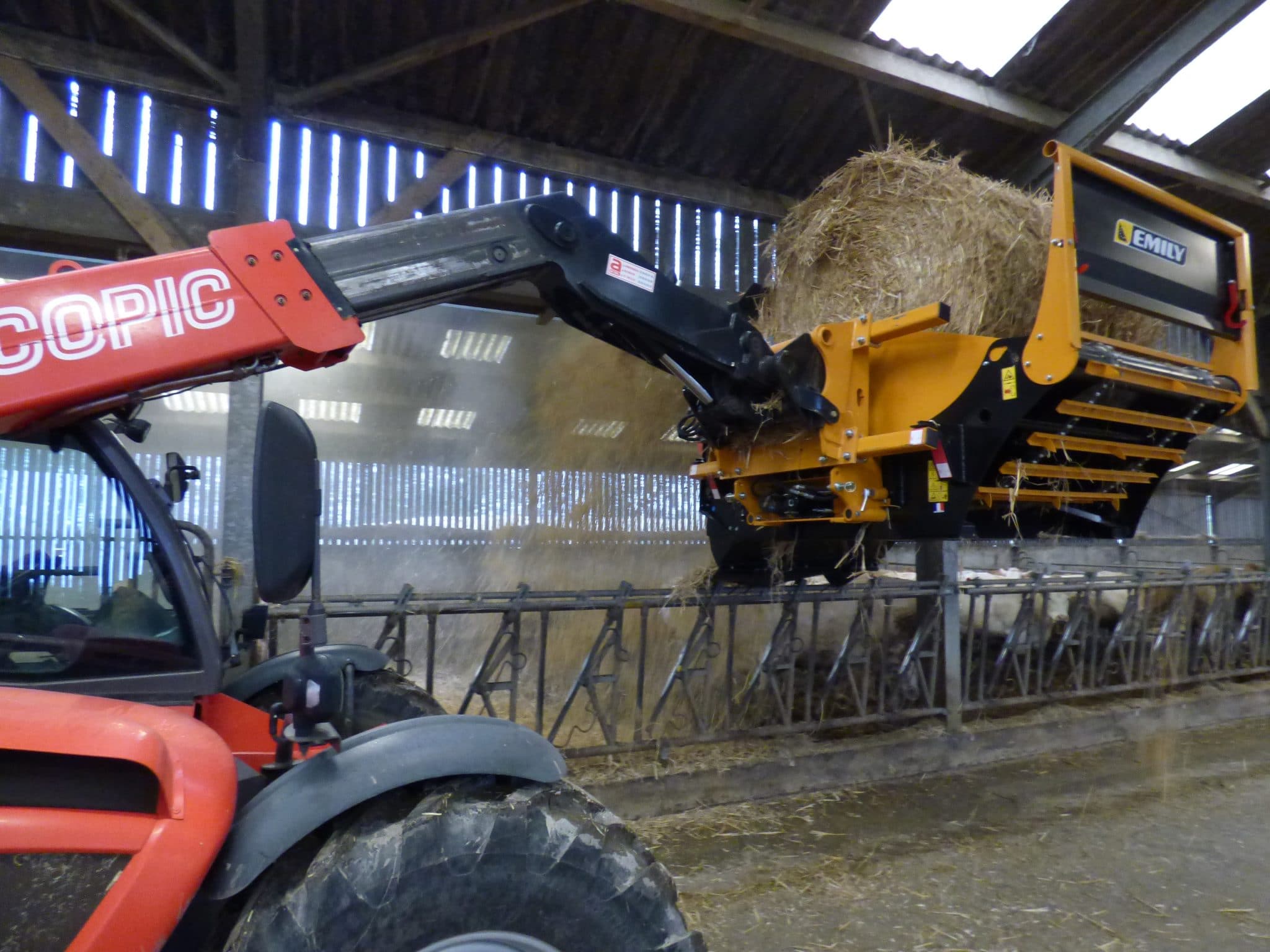

Pick & Go Bale Unroller Spreader
The Pick & Go Bale Unroller Spreader spreads (up to 8 m) and unrolls (round bales (wrapped bales, alfalfa, hay…). Designed for the Pick & Go bale fork carrier. It fits onto front loaders, rear linkage of tractors and telehandlers.
How it works
4 models are available:
- Left front spreading and right unrolling
- Left front spreading and left and right unrolling
- Right front spreading and left unrolling
- Right front spreading and left and right unrolling
Standard equipment
Bale fork carrier:
- Bale fork with 3rd point of tractor included + predisposition for a bolted adaptation
- Forks: Ø 45 mm tines – Length 1200mm
- 3rd point of tractor
- Hydraulic motor included:
– one motor for the unrolling conveyor chain (with manual flow restrictor for the spreading)
– one motor for the spreading (with a valve to stop the spreader when feeding) - Patented gear system with reinforced toothed wheels
Bale Unroller Spreader – Left or right:
- Roller belt
- Large diameter spreader with free wheel system
- Bale support roller with straw guard flap
- Works with 1 double acting spool
Read more
Emily Advantages
- Patented: Unrolling at the opposite side of the spreader, optimization of the machine functions.
- Precision: a cubicle kit composed of a deflector and adjustable visor (optional).
- The bale fork carrier is hitching all the Pick&go attachments: Round Bale Unroller, Feeder Tank, Silage Pusher and Modulo’Sweep.
Read more
Available options
- Bale retaining crossbar (Ø > 1.60m) – for chopped straw
- Cubicle kit (rubbler flap and adjustable visor)
- Bale retaining kit (for unregular bales)
| Model | Weight (kg) |
|---|---|
| Left front spreading and right unrolling | 970 |
| Left front spreading and left and right unrolling | 1040 |
| Right front spreading and left unrolling | 970 |
| Right front spreading and left and right unrolling | 1040 |
